Electric screw air compressor
video
Electric screw air compressor

Electric screw air compressor

Electric air compressors are powered by electric motors and require a stable power supply. They are suitable for factories, mines, and construction sites with complete power supply facilities. Electricity costs are lower than diesel, making operating expenses more economical, maintenance costs are low, and the motor has a long life and high reliability.
Send Inquiry
Description

Electric air compressors are widely used power equipment that converts electrical energy into compressed air for various industrial applications. Compared to diesel-driven compressors, electric models offer stable performance, lower operating costs, and eco-friendly operation, making them the preferred choice in factories, mines, and environments with reliable power supply.

Specifications



Serial Number Model Name Power Displacement (m³/min) Pressure (bar) Screw Compressor Lubricating Oil Maintenance Oil Volume
1 75SDY - 8 Electric Mobile Four - Wheel IP54 75kW 13.2 8 Single - stage Type B 53L
2 90SDY - 8 Electric Mobile Four - Wheel IP54 90kW 15.5 8 Single - stage Type B 53L
3 90SDY - 14.5 Electric Mobile Four - Wheel IP54 90kW 13 14.5 Single - stage Type B 53L
4 90SDYT - 12 Electric Mobile Four - Wheel IP54 90kW 17 12 Dual - stage Type B 53L
5 90SDYT - 18 Electric Mobile Four - Wheel IP54 90kW 13 18 Dual - stage Type D 49L
6 110SDYT - 18 Electric Mobile Four - Wheel IP54 110kW 16 18 Dual - stage Type D 60L
7 132SDYT - 12 Electric Mobile Four - Wheel IP54 132kW 24 12 Dual - stage Type H 87L
8 132SDYT - 19 Electric Mobile Four - Wheel IP54 132kW 21 19 Dual - stage Type D 65L
9 185SDYT - 19 Electric Mobile Four - Wheel IP54 185kW 26 19 Dual - stage Type D 70L
10 185SDYT - 24 Electric Mobile Four - Wheel IP54 185kW 23 24 Dual - stage Type D 70L
11 220SDYT - 18 Electric Mobile Four - Wheel IP54 220kW 27.5 18 Dual - stage Type D 90L
12 220SDYT - 24 Electric Mobile Four - Wheel IP54 220kW 26.5 24 Dual - stage Type D 90L
13 250SDYT - 18 Electric Mobile Four - Wheel IP54 250kW 31.3 18 Dual - stage Type D 90L
14 250SDYT - 24 Electric Mobile Four - Wheel IP54 250kW 30.5 24 Dual - stage Type D 90L
15 280SDYef - 18 Electric Mobile Four - Wheel Variable Frequency 280kW 35 18 Dual - stage Type D 100L
16 280SDYef - 24 Electric Mobile Four - Wheel Variable Frequency 280kW 34.5 24 Dual - stage Type D 100L
17 315SDYef - 18 Electric Mobile Four - Wheel Variable Frequency 315kW 40 18 Dual - stage Type D 100L
18 315SDYef - 24 Electric Mobile Four - Wheel Variable Frequency 315kW 39 24 Dual - stage Type D 100L



  • Electric screw air compressor Key Features

    Stable Power Supply: Powered by electric motors, ensuring consistent and reliable air delivery.

    Energy-Saving: Lower energy consumption compared to diesel compressors, reducing long-term costs.

    Environmentally Friendly: Zero exhaust emissions and lower noise, suitable for indoor and underground operations.

    Low Maintenance: Fewer moving parts and no need for frequent oil changes, filters, or fuel system maintenance.

    Wide Pressure Range: Available in different pressure and flow configurations to meet diverse industrial demands.

    Compact & Mobile: Designed with portability in mind, easy to move and install in different working environments.


Advantages
  • Cost Efficiency

     Electricity is generally cheaper than diesel, providing lower running costs.

  • Durability

                                                                                              Longer service life due to less engine wear and simpler mechanical structure.

  • Quiet Operation

    Reduced vibration and noise, ensuring a safer and more comfortable working environment.






Electric portable compressor


Representative model display

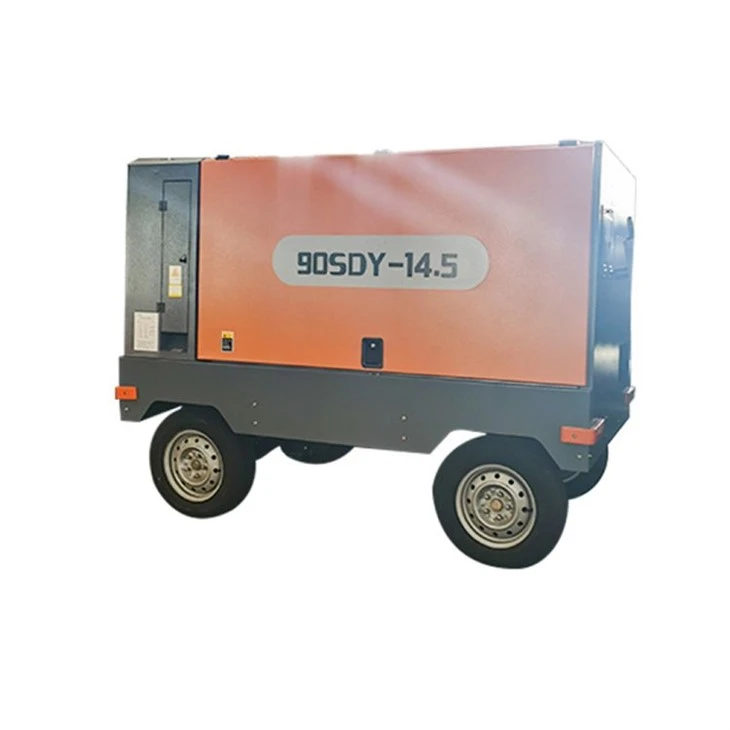

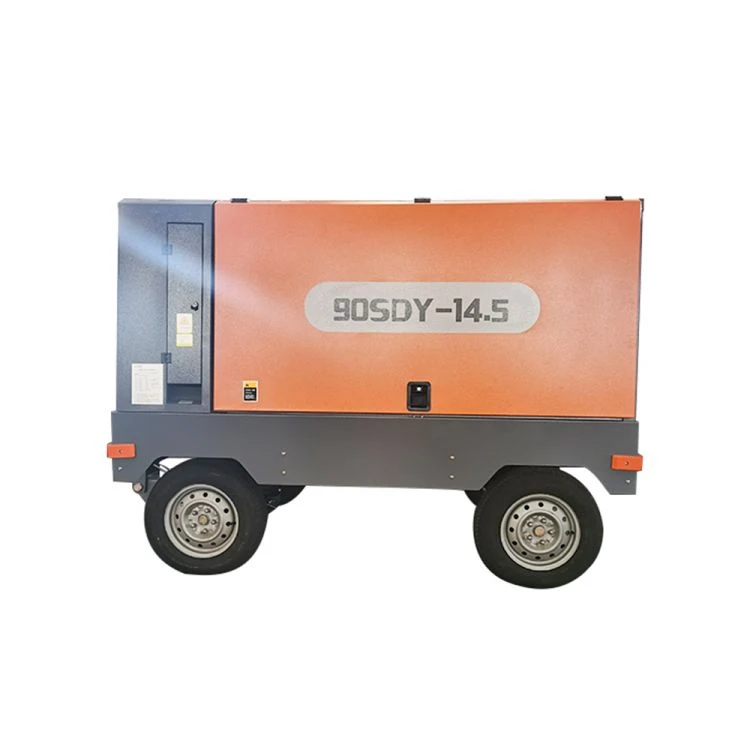

90SDY-14 Electric screw air compressor
Electric air compressor
Electric screw air compressor

Electric portable compressor

Electric screw air compressor

Mobile electric air compressor

Electric screw air compressor

Electric screw air compressor





Electric screw air compressors are widely used in industries such as:

Manufacturing plants (machinery, automotive, electronics)

Mining & tunneling (underground operations where exhaust control is critical)

Construction sites (with stable power supply)

Water well drilling rigs (as a reliable compressed air source)

Textile & food industry (where clean and oil-free air is essential)





Shipping&Payment



Every piece of Miningwell equipment and drilling rig undergoes a rigorous load security check to ensure the safety of the cargo in the container.



Our payment methods include credit card, L/C, T/T, Western Union, and we support shipping by air and by sea.
