Automatic Imaging: 7-inch Android touchscreen displays real-time 2D, 3D, and curve images.
Precise and Stable: 50 years of iterative upgrades ensure high measurement accuracy and stable performance.

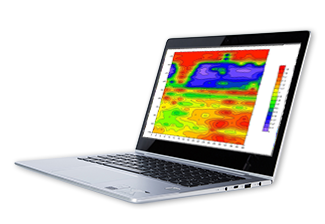

Three-Screen Interoperability: The instrument screen, mobile phone screen, and computer screen are all interconnected.
Intelligent and Flexible: Switchable between MN electrode and TT probe measurement, with optional wireless probe or water-finding magic wand.

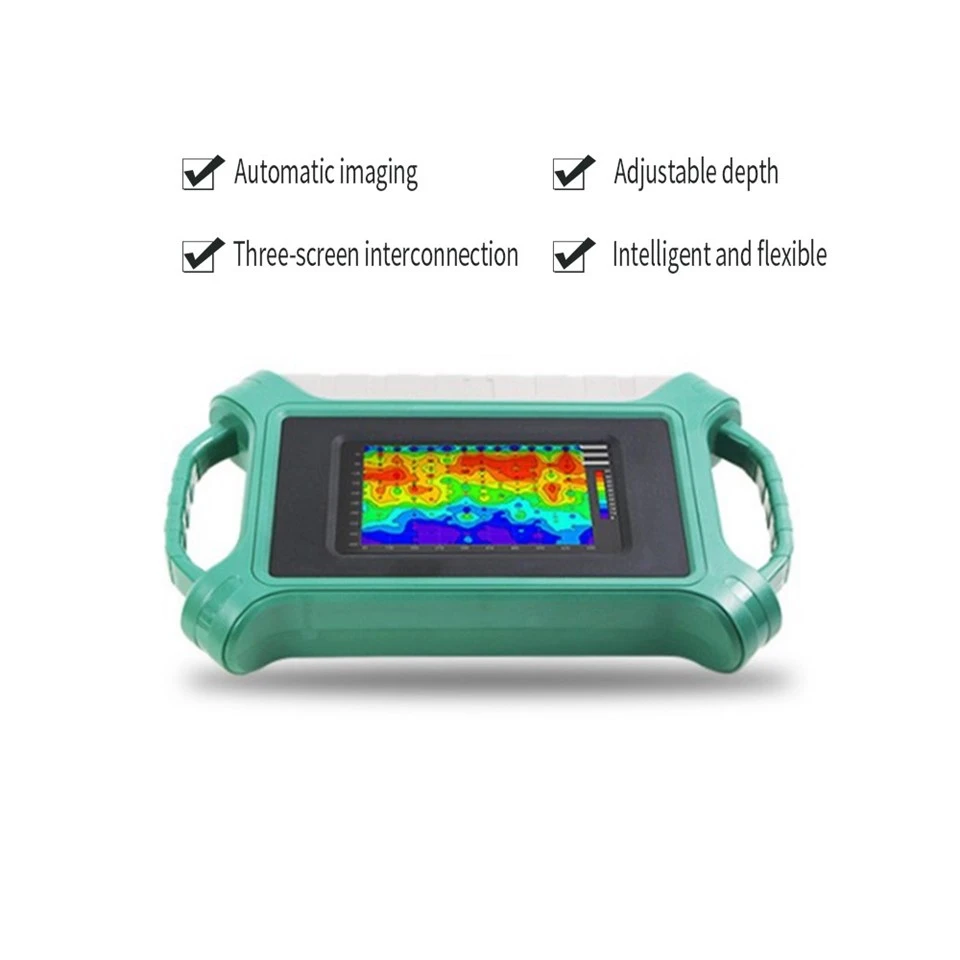

Automatic imaging
Accurate and stable
Three-screen intercommunication
Smart and flexible
THE MAIN PURPOSE
Single-channel water finders are used to determine groundwater location, depth, and yield, among other related information, to guide well drilling and water extraction operations, thereby increasing the success rate of well drilling. They are widely used in detailed hydrogeological surveys and censuses.
SIX ADVANTAGES TO HELP YOU FIND WATER WITHOUT WORRY
1,High precision and strong anti-interference
The core electronic module of the instrument adopts integrated packaging, which has high precision and greatly enhanced anti-interference. It is equipped with a high-performance processor to run multiple algorithms, with stable and accurate output, ensuring the accuracy of the instrument in various environments.
2,Automatic imaging analysis

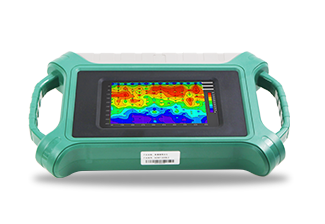

After the measurement is completed, it will be instantly converted into two-dimensional and three-dimensional color images and various curve graphs. It is equipped with a 7-inch touch screen for easy operation and can be learned in 5 minutes.

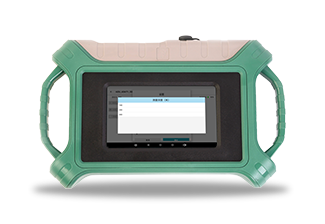

3,Adjustable depth, intelligent and flexible
Each product has multiple adjustable depths and switchable MN and TT measurement modes, which is very smart and flexible.

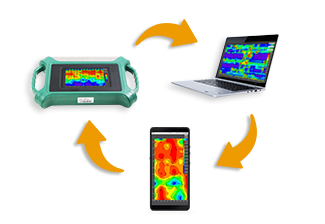

4,Multi-screen data sharing

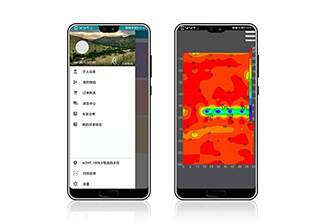

Mobile phones, instruments, computers, and remote terminals can share data by logging in with the same account, and data sharing is supported between multiple accounts.
5,AI automatic analysis
AI automatically analyzes and provides 24-hour free online image analysis capabilities, and intelligently gives well drilling suggestions. AI continues to learn and grow, and its accuracy in well drilling and water locating becomes more and more accurate, providing a reliable basis for well drilling and water locating.
6,Free upgrade and value-preserving exchange
The instrument includes a full set of APP software, supports free online upgrades, and can be exchanged for other products within 6 months of purchase
7,Lifetime technical support
Data processing and analysis, instrument maintenance, online technical guidance and other services are all lifelong technical support

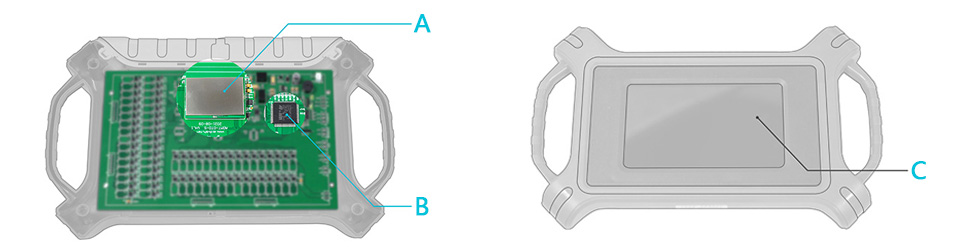

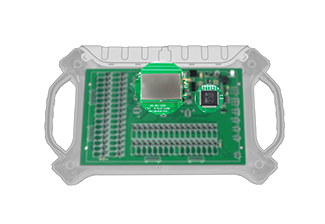

Inside the machine
Standard high-fidelity signal processing amplifier and high-performance processor
A. High-fidelity signal conditioning amplifier ensures signal accuracy.
The analog circuitry of the instrument's front-end signal conditioning amplifier utilizes integrated shielding, significantly enhancing interference resistance and improving signal output accuracy.
B. High-performance processor runs multiple algorithms.
A high-performance processor runs multiple algorithms, ensuring stable and accurate output and ensuring instrument measurement accuracy.
C. 7-inch touchscreen operation.
Real-time 2D/3D and curve graphics.

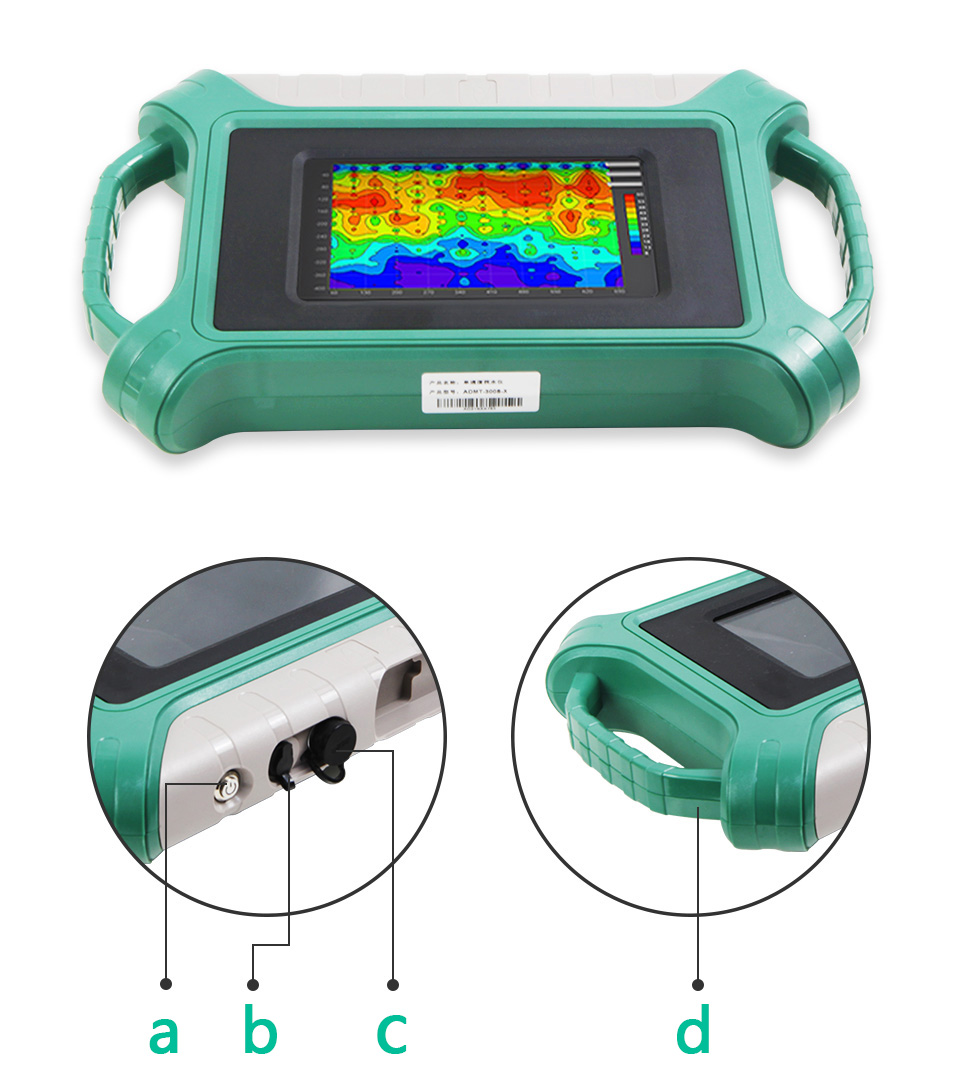

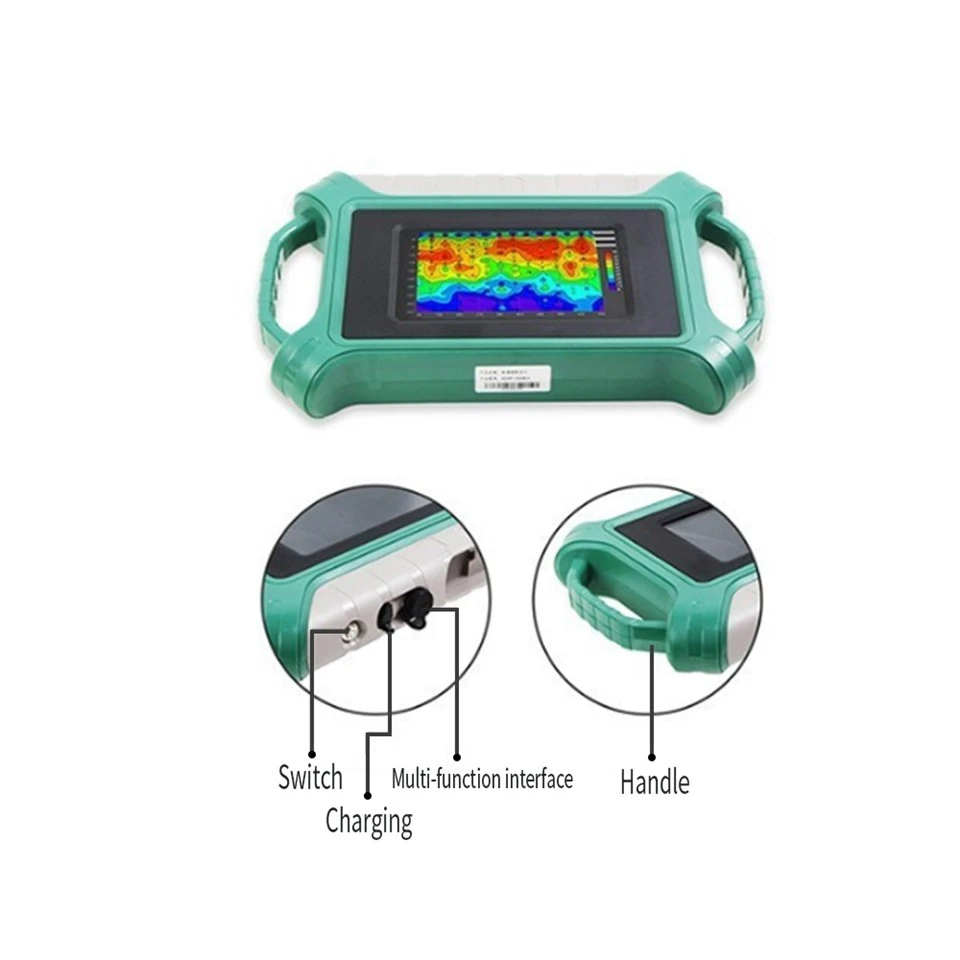

a. Switch b. Charging port c. Multi-function interface d. Handle

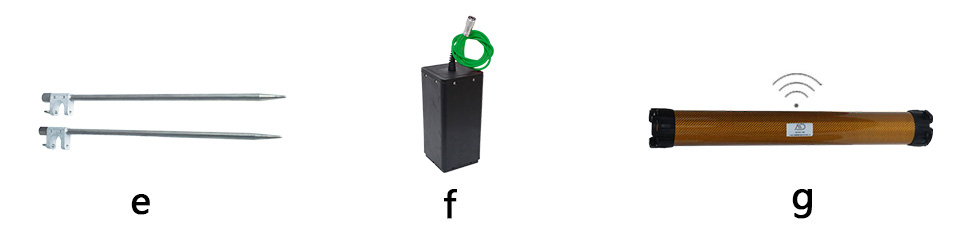

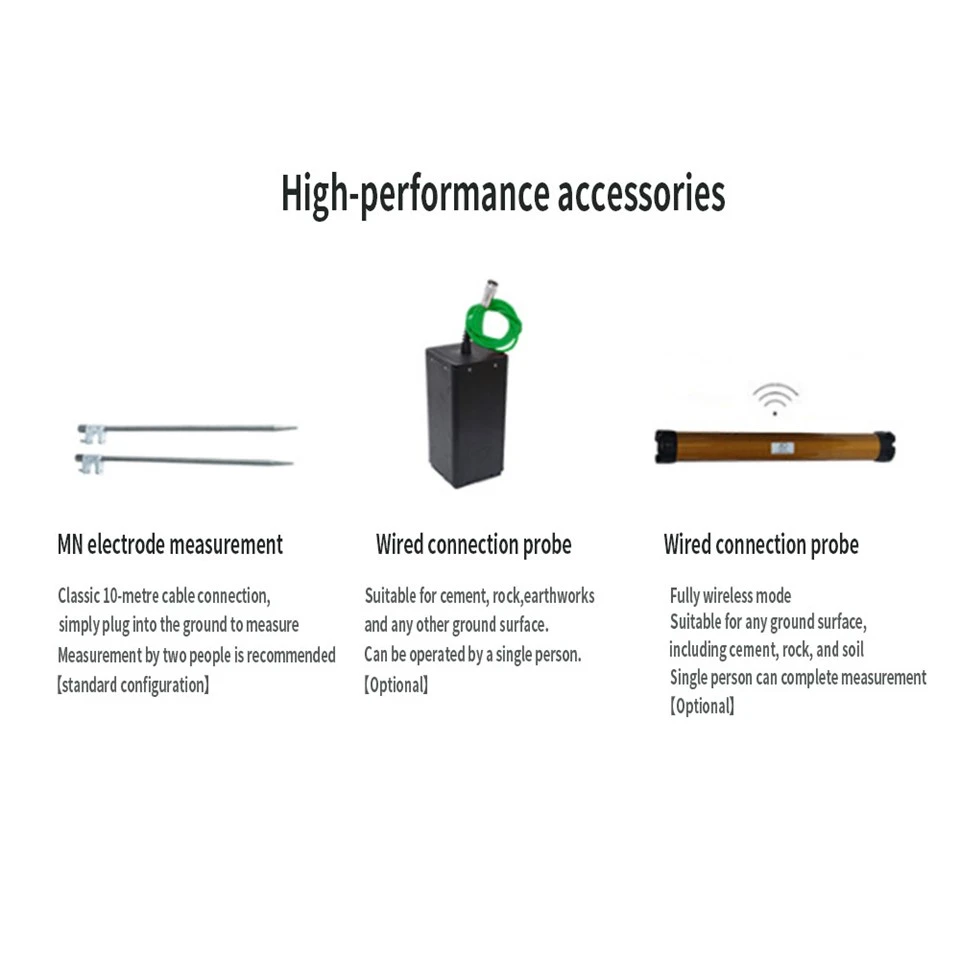

High-performance accessories

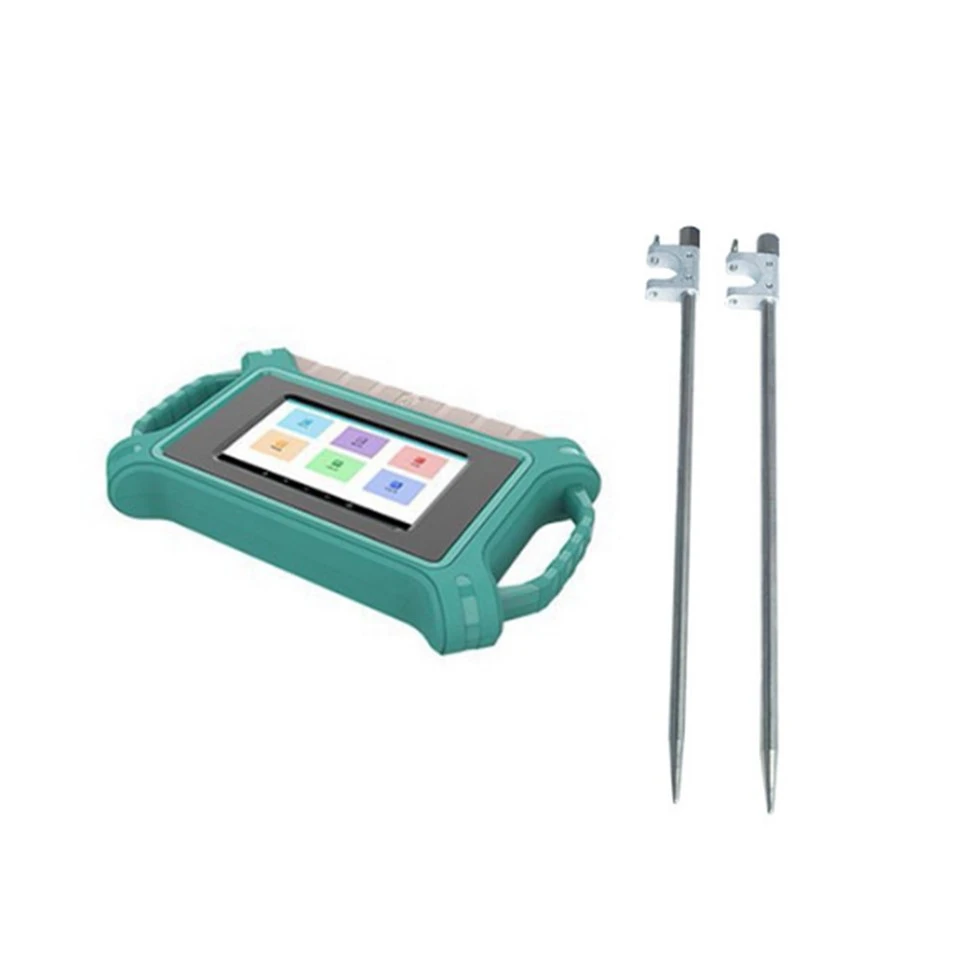

e. MN Electrode Measurement [Standard]
10-meter measuring cable connects to the ground for measurement. Ideal for two people.
f. Wired Electromagnetic Probe [Optional]
Suitable for any surface, including cement, rock, and frozen soil. Single-person measurement possible.
g. Wireless Golden Cudgel [Optional]
Completely wireless mode, suitable for any surface, including cement, rock, and frozen soil. Single-person measurement possible.

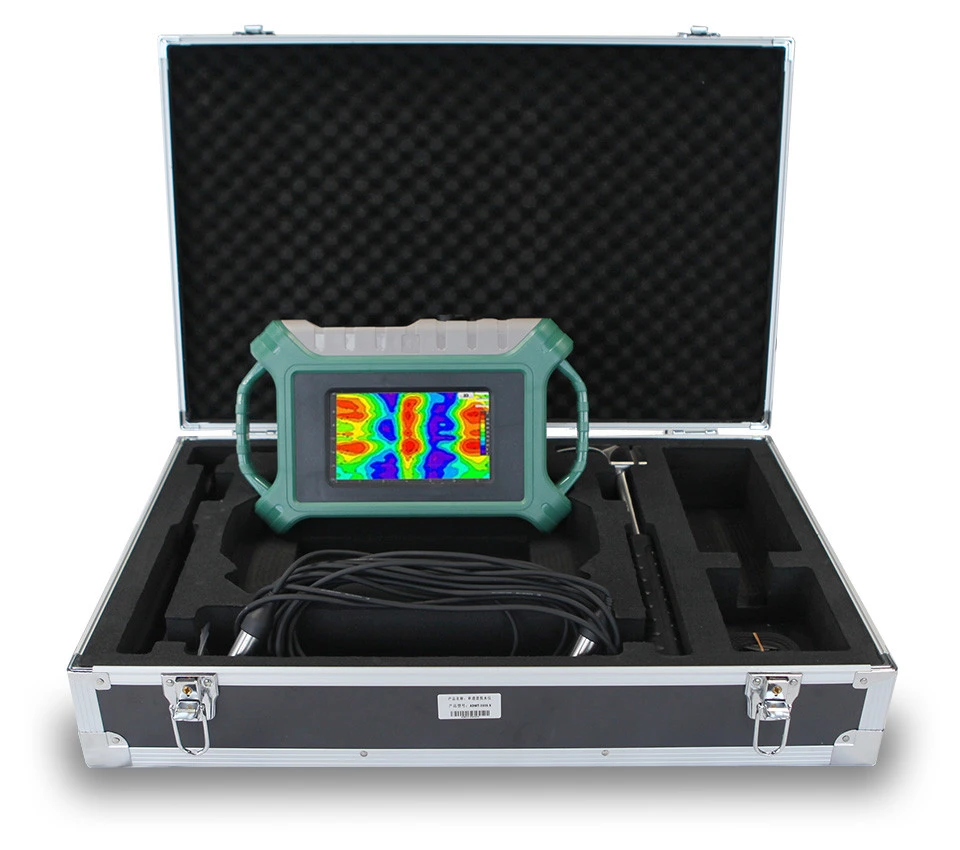

Single-channel real-time imaging underground water detector
Main models and technical parameters
|
Single-channel real-time imaging underground water detector |
ADMT-300S-X | ADMT-600S-X | ADMT-1200S-X | ADMT-3000S-X |
|---|---|---|---|---|
| Maximum Depth (m) | ≤300 | ≤600 | ≤1200 | ≤3000 |
| Channel Input | 1 channel MN input | |||
| Channel Selection | 1 | |||
| Selectable Depths | 100-300 | 100-600 | 100-1200 | 100-3000 |
| Depth Layers | 10-60 | 10-80 | ||
| Connectivity | Serial port, Wifi, Bluetooth 4.0, USB (optional 4G communication) | |||
| Display | 7-inch IPS touch screen with a wide viewing angle of 178° | |||
| Operating System | Android 13 | |||
| CPU | RK3568 | |||
| GPU | Mali G52 | |||
| Main Functions | Selectable depth, real-time 2D/3D mapping, removable battery | |||
| Measurement Mode | MN/TT | |||
| Frequency Range (Hz) | 1-8K | 0.01-8K | ||
| Frequency Selection Filter | Preset frequency selection and intelligent frequency selection, analog + data filtering 1-16 times superposition optional | |||
| Resolution | 0.1mV±5% | 0.01mV±2% | ||
| Sampling Time (seconds) | 30-280 | 60-900 | ||
| Battery Power Consumption | 600mA/H | |||
| Main Unit Weight | 1.6kg | |||

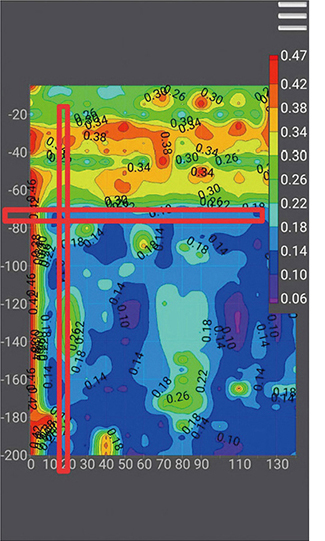

Effect of digging wells to find water
Instrument:
Single-channel real-time imaging water detector
Surveying line layout:
Point spacing 2 meters, pole spacing 20 meters, 12 measuring points, MN electrode measuring line length 22 meters
Water output:
Water was observed around 80 meters, with a flow rate of 20 cubic meters per hour. The measurement results are consistent with the actual situation.
SERVING DOZENS OF COUNTRIES AROUND THE WORLD,WELL RECEIVED BY USERS.
服务保障
ono-year warranty
Lifetime after-sales service
Professional Consultants
Value preservation and replacement
