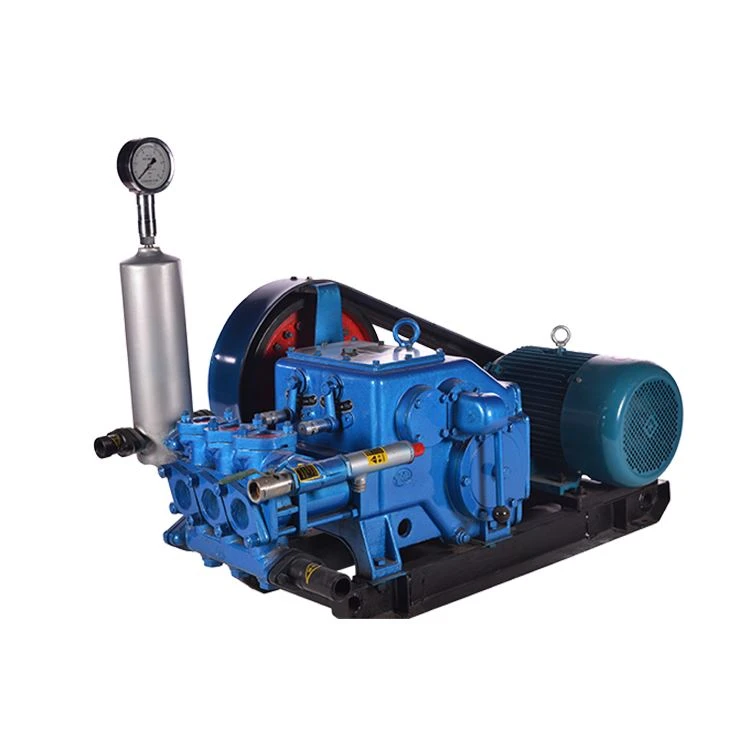

Mud Pump

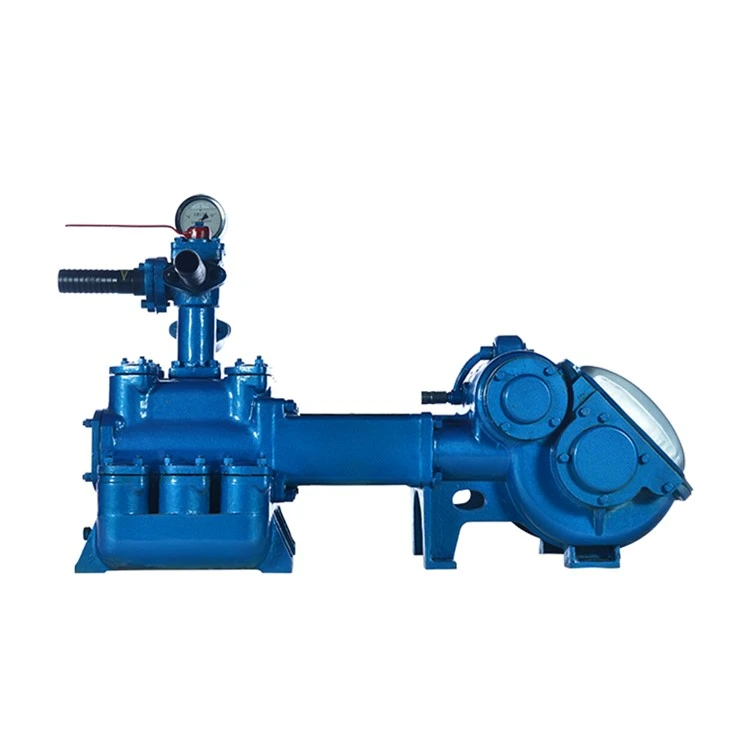

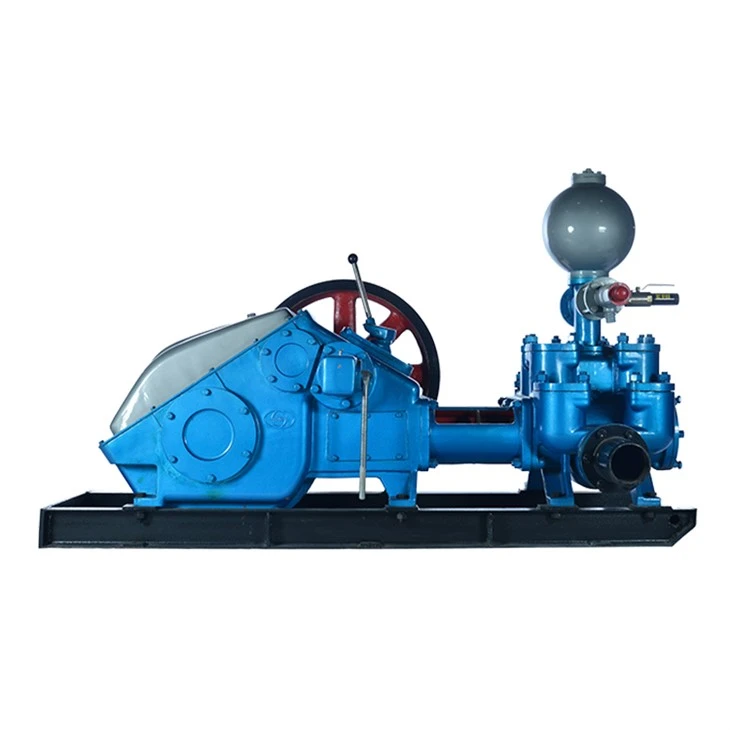

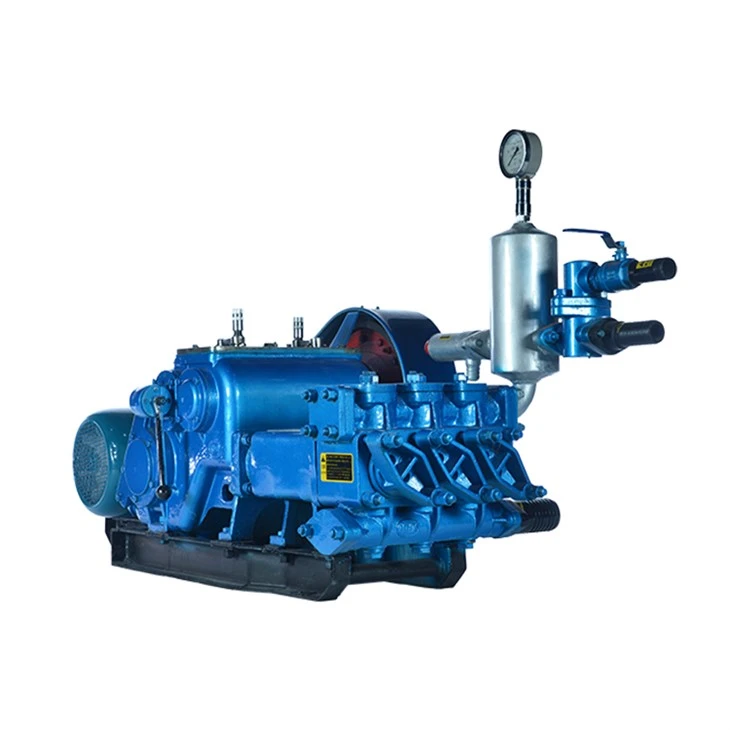

BW160 duplex mud pump is widely used in railroad, water conservancy, metallurgy, construction, geological exploration, engineering exploration (drilling depth up to 1000 meters) and so on.

BW250 mud pump has two cylinders with different diameters and four variable speed gears, the output and drilling depth are adjustable, it can be used for filling cement slurry or used with 1500 meters drilling rig.

BW-320 mud pump matching drilling rig drilling, drilling process mud pump will be pumped into the hole, to provide a protective layer for the hole wall, lubricate the drilling tools, and bring the rock chips back to the ground. It is suitable for geological core drilling and exploration drilling within 1500 meters.

BW450 mud pump is horizontal three-cylinder single-acting reciprocating piston pump with three cylinders and four rotational speeds, the displacement and drilling depth can be adjusted according to the use, the deepest can be adjusted according to the use, the deepest can be matched with 1800 meters drilling rigs, and it can also be used for cement filling.

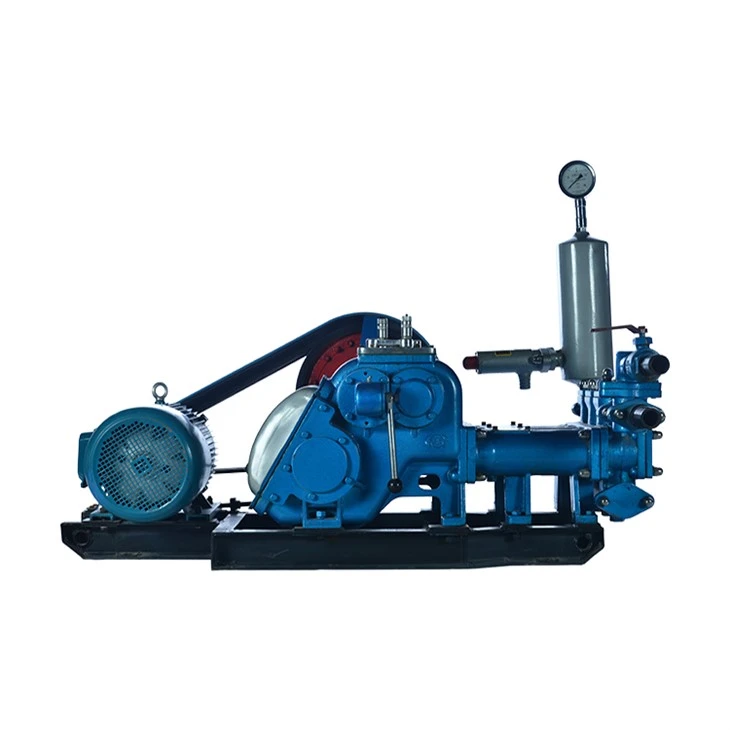

BW850 electric high pressure mud pump is a horizontal double cylinder reciprocating double acting piston pump.

1) The mud pump has low noise and dust, and the operation is environmentally friendly.

2) The power has electric power drive, diesel power drive, which customers can choose when ordering, or hydraulic motor drive.

3) Compact structure, light weight, small volume, beautiful appearance, can be driven by hydraulic motor, electric power or diesel engine.

4) BW series mud pump is horizontal three-cylinder grouting pump with high stability and pressure.

5) Mud pump adopts gear variable speed to adjust the flow, large displacement, easy to operate.

6) High quality pump parts, less wearing parts, long service life, low construction cost.

7) Electric high-pressure plunger double-cylinder slurry pump has fast suction and discharge speed and high pumping efficiency.

Drilling rig and mud pump application range:

1) Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;

2) Exploration: Coal mining exploration, Ore exploration;

3) Water well : Small hole diameter water well drilling;

4) Pipe-installing : Geothermal pipe-installing for heat pump;

5) Foundation piling: Small-diameter hole foundation piling drilling.

They are also the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.

Valve seat and valve body wear: Check and replace regularly to avoid mud leakage or impact damage.

Cylinder liner corrosion or strain: Use high-quality mud and regular cleaning to extend life.

Lubrication system blockage: Causes the power end to overheat or even burn, and the lubricating oil should be replaced regularly.

Seal aging or leakage: Key parts such as piston seals and stuffing boxes should be checked regularly.

The following factors should be considered when selecting:

 Drilling depth and geological conditions

 Required flow and pressure

 Mud type used (clean water, bentonite mud, foam mud, etc.)

 Whether an air compressor or hydraulic drive system is required
