Specifications
|
Technical Parameters |
|
|
Geology drilled |
All kinds |
|
Drilling Type |
DTH & RC |
|
Drill system and operation |
Hydraulic |
|
Max.Hole Diameter (mm) |
Φ105-Φ350 |
|
Max.Hole Depth (m) |
300 |
|
Rotation Torque (N.M) |
9200 |
|
Rotation Speed(Forward rotation) (rpm) |
0-160 1st Gear |
|
0-80 2nd Ger |
|
|
Rotation Speed(Revise rotation) (rpm) |
40 1st Gear |
|
80 2nd Ger |
|
|
DTH Drill pipe diameter (mm) |
102/114/127 |
|
RC Drill pipe diameter (mm) |
102/114/127 |
|
Drill pipe length (mm) |
3000 |
|
Max. Feed Speed (M/min) |
5-30 |
|
Max. Lifting Speed (M/min) |
5-18 |
|
Feed Stroke (mm) |
3400 |
|
Max. Lifting force (T) |
12 |
|
Lifting force of Main winch(Optional) |
4 |
|
Lifting force of tool winch (T) |
1.5 |
|
Lifting height of tool winch (m) |
7.5 |
|
Engine |
|
|
Diesel Engine type (Kw) |
Cummins 132 |
|
Rated Horse power (Kw) |
112 |
|
Electrical System (Volt) |
24 |
|
Centralizer |
|
|
Type |
Open |
|
Diameter (mm) |
300 |
|
Hydraulic Clip |
|
|
Clamping Force (KN) |
157 |
|
Clamping Rod Diameter (mm) |
76-219 |
|
Dimension |
|
|
Net Weight (T) |
13 |
|
Shipping Length (mm) |
7550 |
|
Shipping Width (mm) |
2260 |
|
Shipping Height (mm) |
2700 |
|
Hydraulic Leg Feed Stroke (mm) |
600 |
|
Gradeability (°) |
21 |
|
Ground Clearance (mm) |
300 |
|
Volume of Flow (mm) |
200 |
Product detail
- Brand name: miningwell
- Certification: CE, ISO
- Minimum order quantity: 1 set
- Packing Detail: 40HQ-20GP
- Delivery Time:15-20 days
Payment terms:L/C, T/T, Western Union
Main components
1) Cummins engine 112KW.
2) Crawler chassis, steel track plate, rubber track plate can be installed.
3) Traveling reduction system.
4) Hydraulic traveling motor imported from Korea.
5) Eaton (American brand) rotary motor.
6) American PERMCO hydraulic oil pump.
It can also collect the slag of cyclone separator, which can be used for sampling and analyzing in geological exploration department. It is the preferred equipment for deep holes in geological exploration drilling, borehole drilling, monitoring wells, ground source heat pump air conditioning and so on.

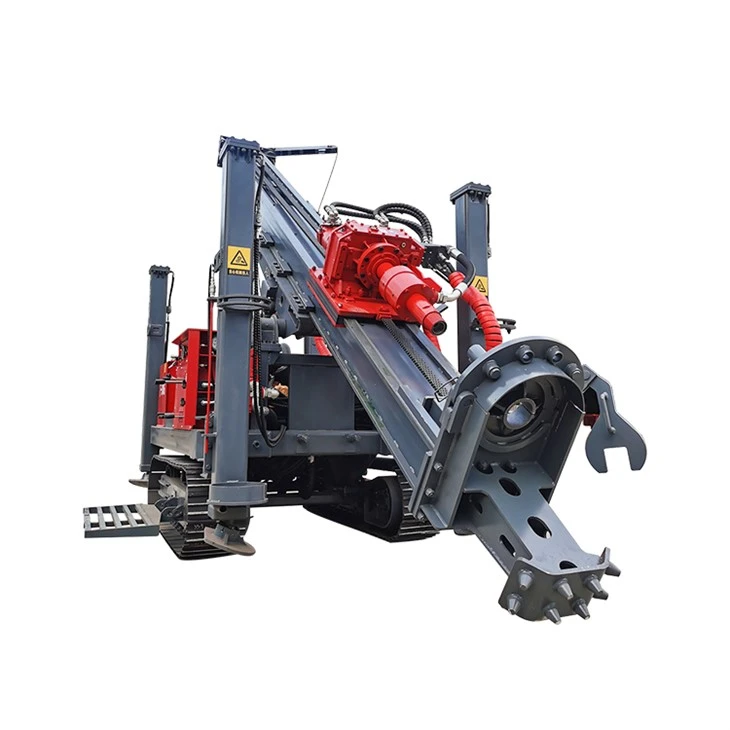

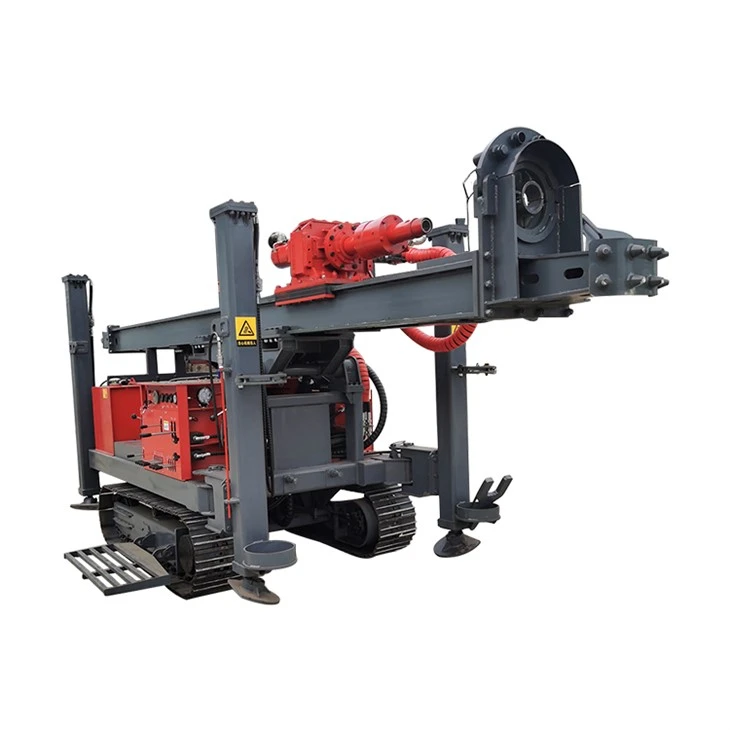

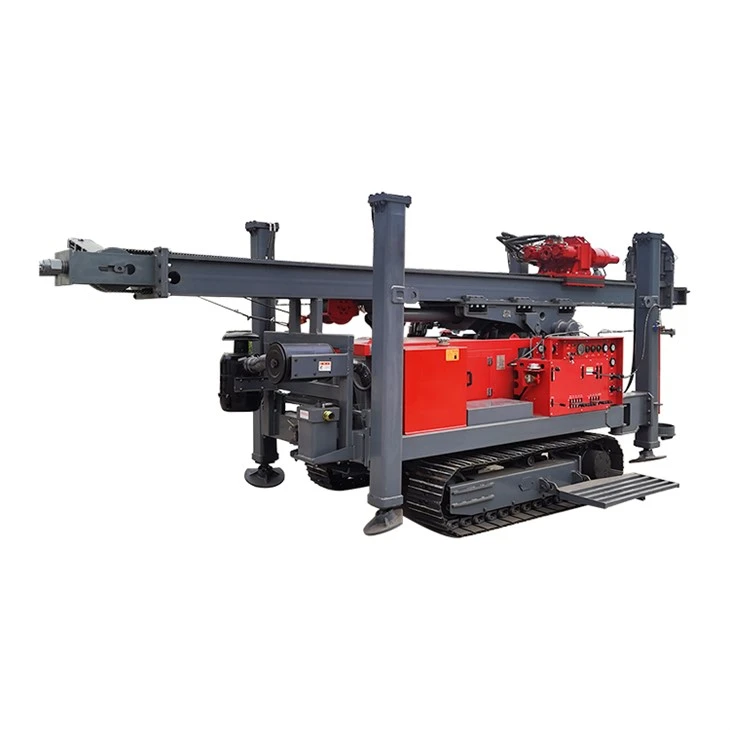

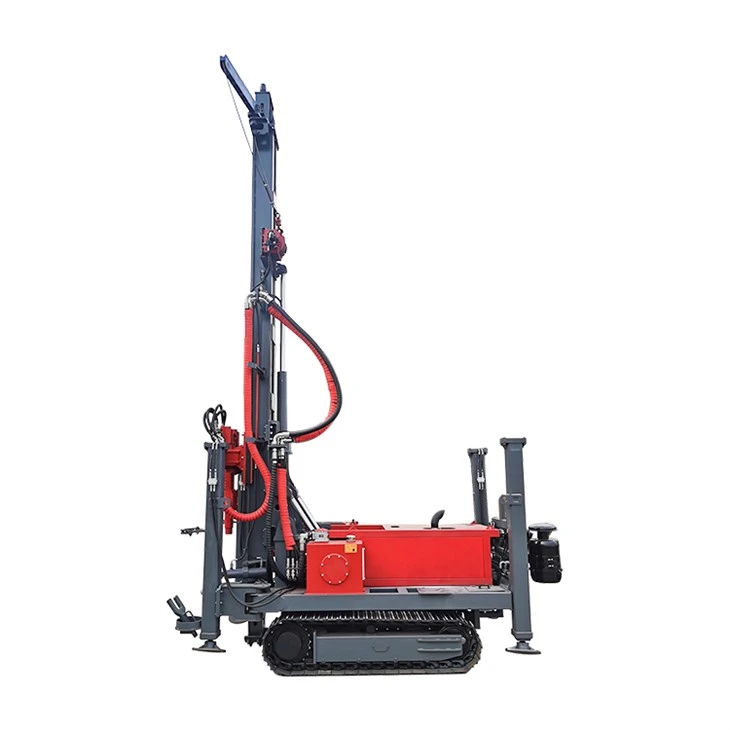

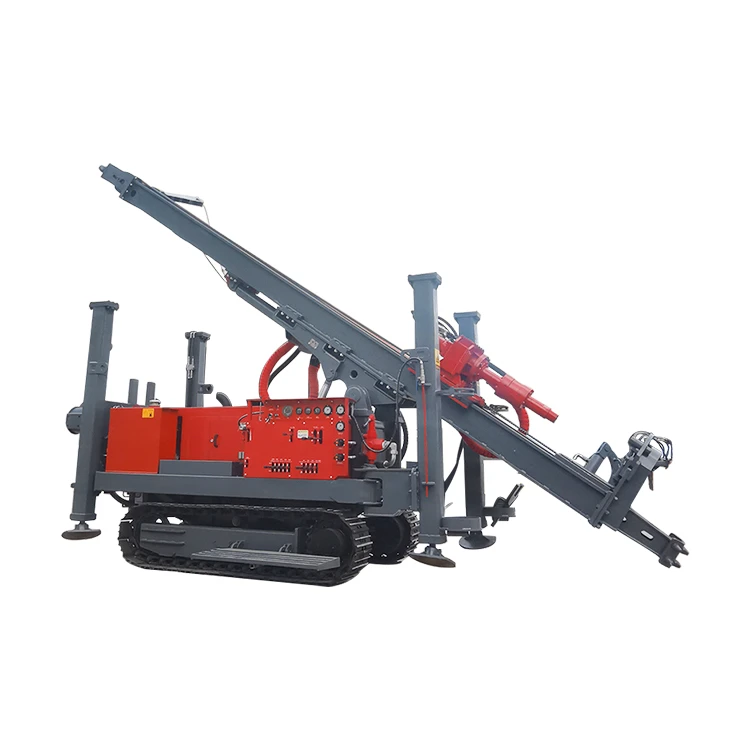

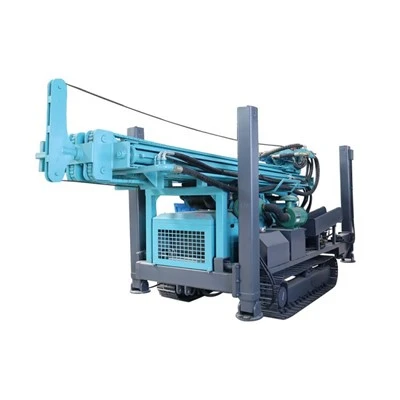

The reverse circulation water well drilling rig can be used for reverse circulation water well drilling rig of various compressed air ground surface holes. The lifting system, guide compensation, drill pipe loading and unloading, rotation and feeding, outrigger, winch, walking and other systems all realize hydraulic system, which greatly reduces the labor intensity of workers and improves the construction efficiency and quality.
Features
1) The hydraulic system driven by diesel engine is adopted, and all the systems such as walking, rotating, feeding, lifting, outrigger, lifting, compensation system, and rod changing realize hydraulic drive.
2) The reverse circulation system is used in conjunction with the down hole drilling technology, and the air compressor provides compressed air for impact and dust collection.
3) When working, the reverse circulation hammer is used with double pipes, compressed air enters between the two pipes and dust collection is discharged from the inner pipe.
4) Ordinary drilling tools can also be used for positive circulation.
5) The working system consists of feeding system, guide (mast), rotating head, compensation system, righting device, rod changing system, winch and so on.
6) Shaft pressure, feeding speed and rotating speed are adjustable.
7) The traveling system is self-traveling system, easy to move, four hydraulic outriggers can be installed, and when loading, no need to get on the car, it can be loaded directly.
8) Four hydraulic outriggers are used to keep the balance of drilling during the working process.
Shipping&Payment
Every piece of Miningwell equipment and drilling rig undergoes a rigorous load security check to ensure the safety of the cargo in the container.
Our payment methods: credit card, L/C, T/T, Western Union, and we support shipping by air and by sea.
