Specifications
|
Model |
Vomule(m³/min) |
power(kw) |
Rated pressure(bar) |
Air end |
Motor protection grade |
weight(kg) |
size (Length x Width x Height) mm |
|

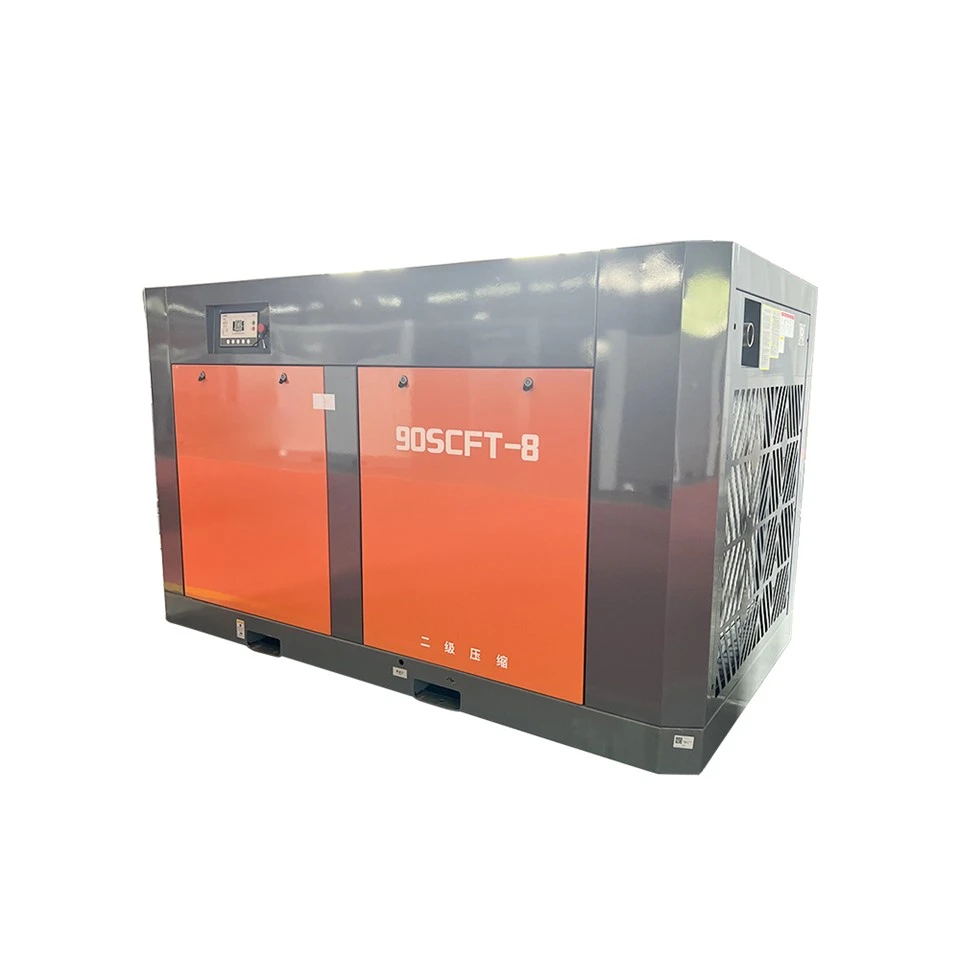

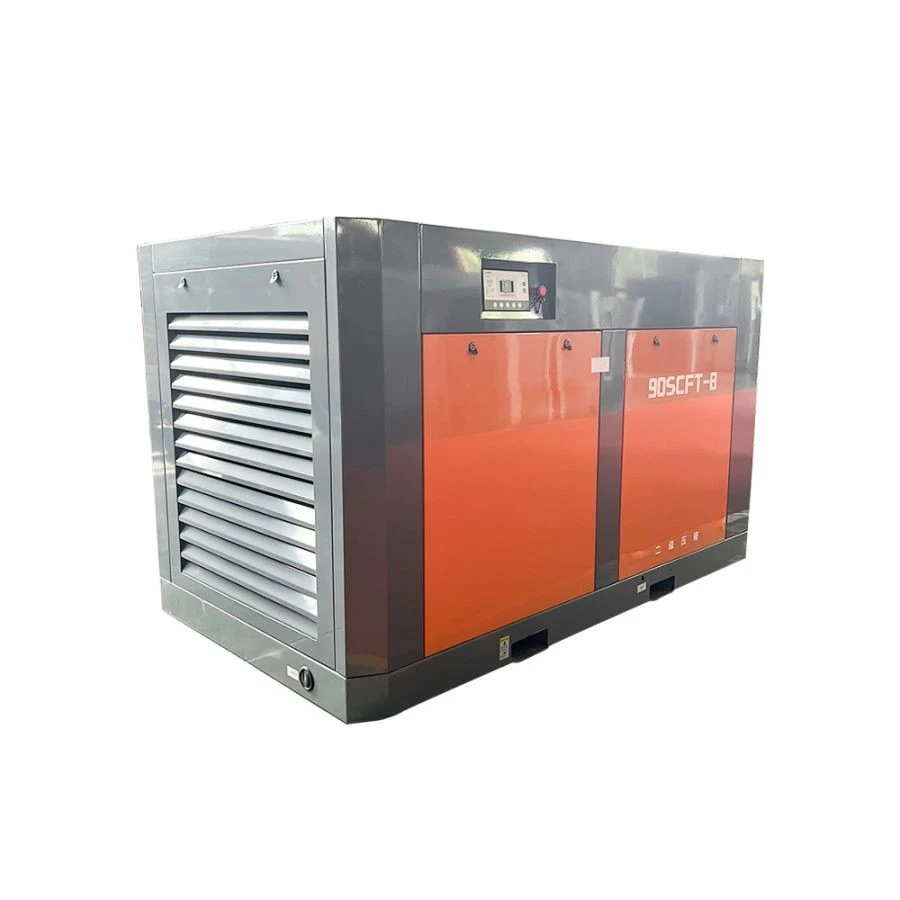

90SCFT-8 |
20 | 90 | 8 |
Two-stage |
IP54 |
2185 |
2825x1525x1620 |
|
110SCFT-8 |
23 | 110 | 2490 |
2965x1525x1740 |
|||
|
132SCFT-8 |
27 | 132 | 2580 |
2680×1410×1600 |
|||
|
185SCFeT-8 |
37 | 185 | 5050 |
3100x1900x2150 |
Product detail
The newly designed intake valve and optimized air path control system series products reduce the number of control components, and the diesel engine can be easily started under almost no-load conditions if the secondary source fault is eliminated.

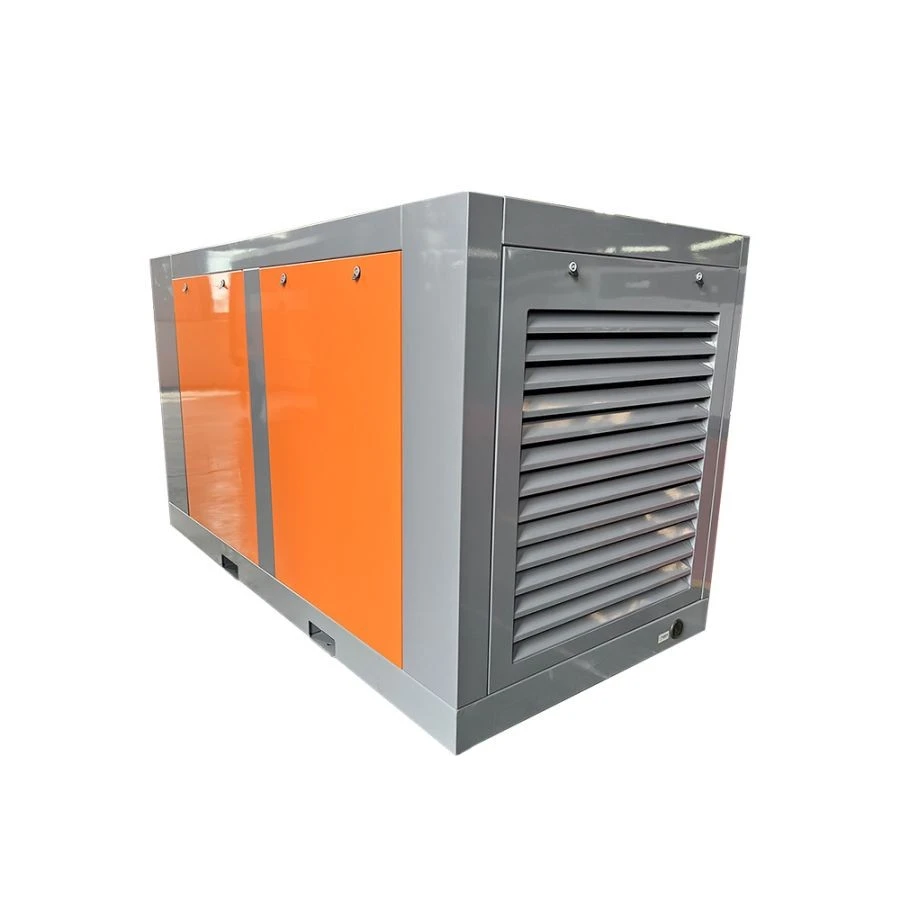

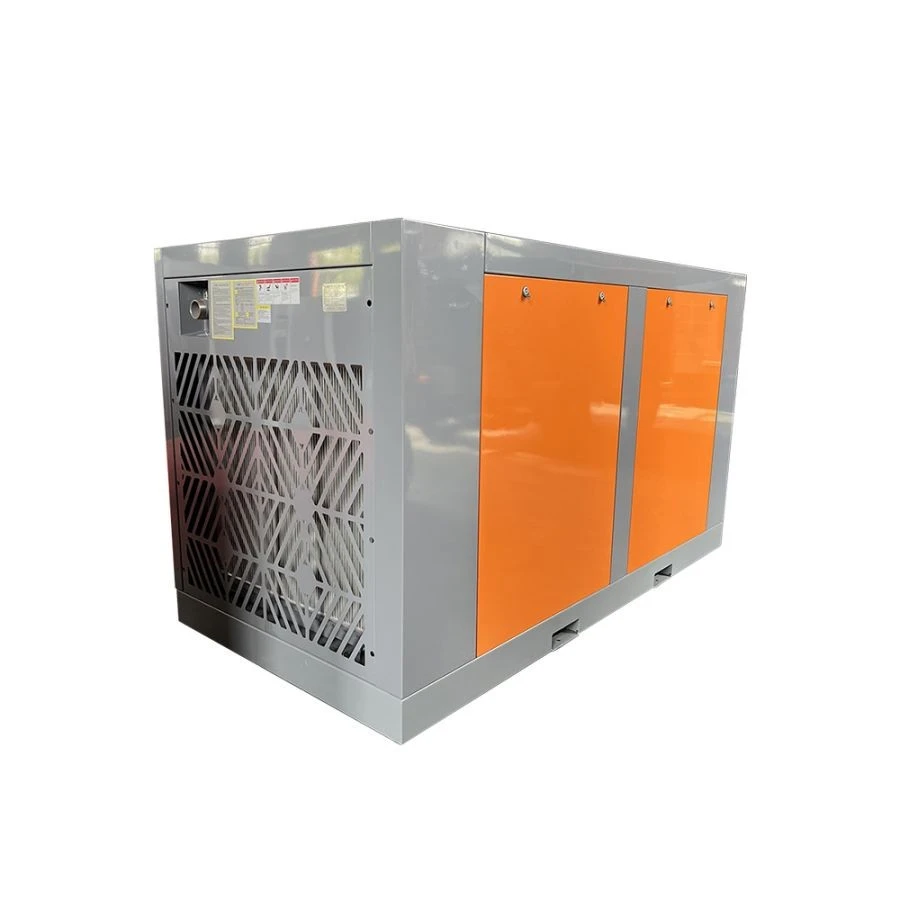

This series of electric truck mounted rotary screw air compressors is designed for φ80-110mm aperture down-the-hole drills, anchors, various pneumatic picks, rock drills, shotcrete machines and various air sources required by engineering mines;
The full range of electric screw type rotary air compressors adopts National III engines.
Our Features
Long service life of the air end
Asymmetric profile rotor with ball bearings and low-speed operation, less wear, less maintenance costs and long service life.
More reliable operation
Frequency soft start can avoid impact on the power grid, and can also reduce the loss of electronic switches and motor coils. When the motor is turned on and off, it does not require too much power, which can increase the protection of the motor. Thereby reducing the demand for peak current and improving the power factor.
Freely set the required pressure and maintain air supply at constant pressure
Users can set any pressure within the range of 3-13Bar without changing gears and belts. When air consumption increases, the unit automatically speeds up to increase air production while the pressure does not drop to ensure continuous air supply; when air consumption decreases, the unit speed automatically slows down to reduce air production so that the pressure does not rise to ensure constant supply.
Shipping&Payment
Every piece of Miningwell equipment and drilling rig undergoes a rigorous load security check to ensure the safety of the cargo in the container.
Our payment methods: credit card, L/C, T/T, Western Union, and we support shipping by air and by sea.
